LIBERTY FLAGS, The American Wave®

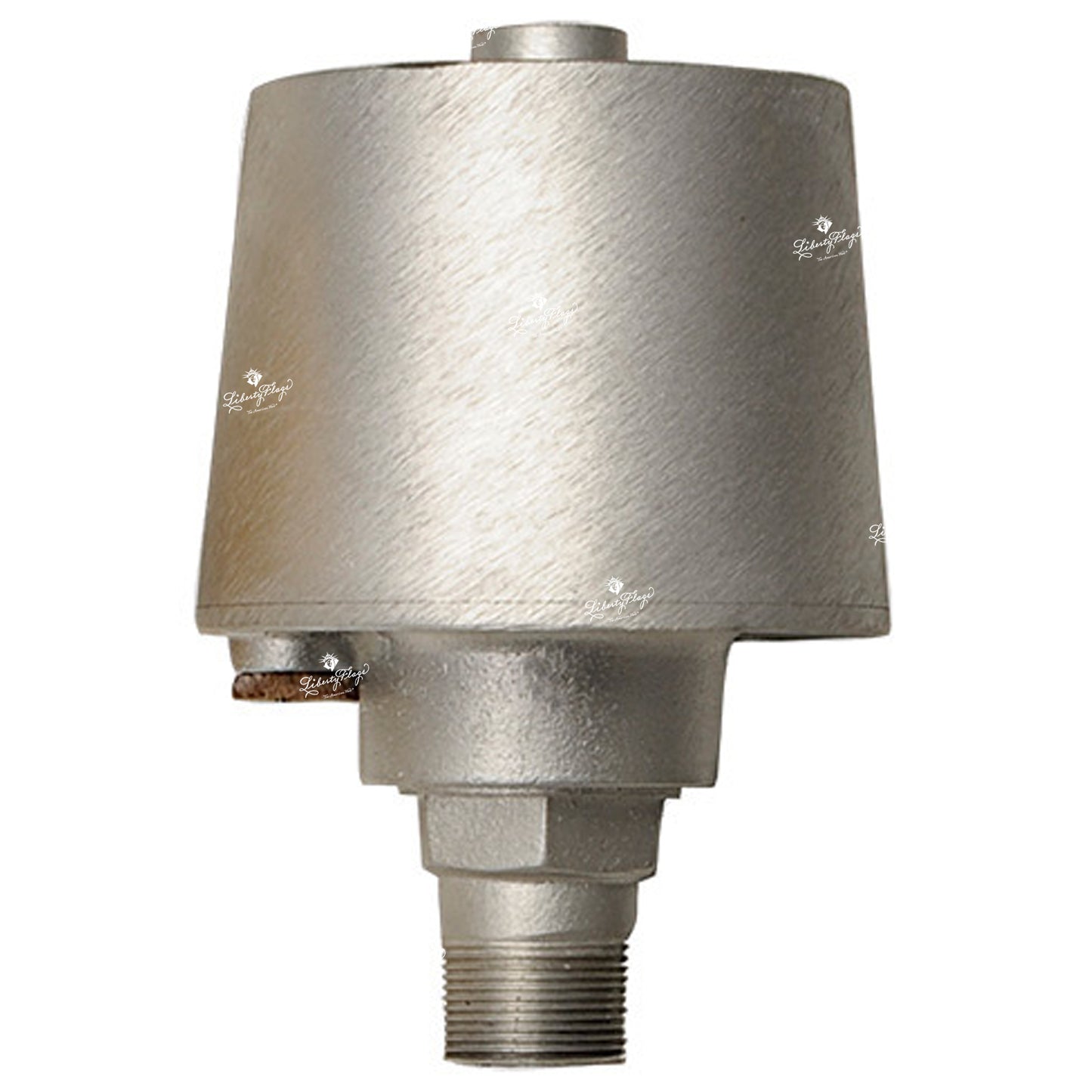

Truck - Cone Style for Internal Cable

Truck - Cone Style for Internal Cable

SKU:PH4TCS

Regular price $500.00
Regular price Sale price $500.00
Sale Sold out
Size

Suitable for ground mount internal cable flagpoles.

Flagpole Trucks - Cone Truck for Internal Cable Pole

The flagpole truck is a component part at the top of the flagpole and serves 3 purposes

  1. Houses the pulley through which the halyard (cable) passes through to raise and lower the flags
  2. Holds the finial (ornament) at the top of the flagpole
  3. Keeps the weather elements out of the flagpole

Features

  • Heavy cast aluminum
  • 2 sizes
  • Small size: use with maximum top shaft OD 3-1/2"
  • Large size: use with maximum top shaft OD 4-1/2"
  • Upper and lower stainless steel sealed lubricant bearings on cast aluminum spindle
  • Brass exit bushing
  • Threaded 1-1/4" NPT spindle screws into flagpole with 1-1/4" NPT inner threads
  • Cable limit: 5/32"
  • Compatible with internal cable based commercial flagpoles

Special Benefits

  • Revolving truck moves with the wind so the flag won't wrap around the flagpole
  • Built with stainless steel sealed lubricant bearings for optimal performance life

This is a component part only and therefore the design and engineering of the application are the responsibility of the customer.
